Water pump installation
Hi folks,
I have to admit to a silly mistake!
I've removed several parts from my engine ( still in the car) as part of a "smartening up" exercise, painting and checking various components.
I removed the radiator, Dynamo, air intake hose support bracket and the water pump, and many others. After painting said parts, checking the state of the water pump impeller etc, I started to put things back.
I foolishly didn't take enough photos, and now can't figure out the relationship between the dynamo "strap" and the air hose support bracket, and where the long (8.3 cm) water pump bolts should go.
I'd be very grateful for some quidance!
Shamefaced Richard
I have to admit to a silly mistake!
I've removed several parts from my engine ( still in the car) as part of a "smartening up" exercise, painting and checking various components.
I removed the radiator, Dynamo, air intake hose support bracket and the water pump, and many others. After painting said parts, checking the state of the water pump impeller etc, I started to put things back.
I foolishly didn't take enough photos, and now can't figure out the relationship between the dynamo "strap" and the air hose support bracket, and where the long (8.3 cm) water pump bolts should go.
I'd be very grateful for some quidance!
Shamefaced Richard
1965 Jaguar "S" type, 3.8 automatic
Mercedes SL 400
Land Rover Discovery 4 H.S.E.
Mercedes SL 400
Land Rover Discovery 4 H.S.E.
Re: Water pump installation
Can't help with the position of the long bolts but it should be easy to fit them through a process of elimination.

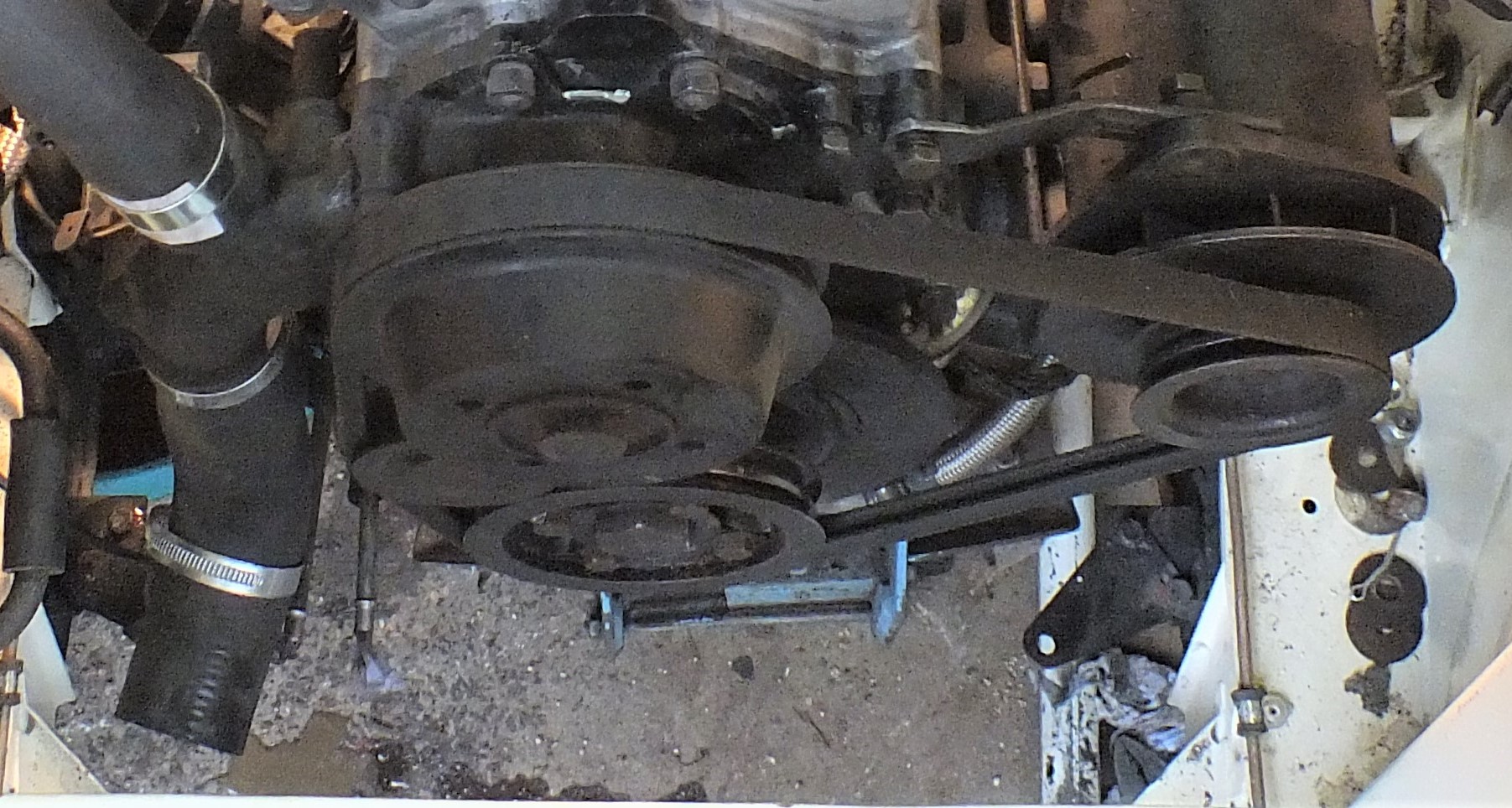

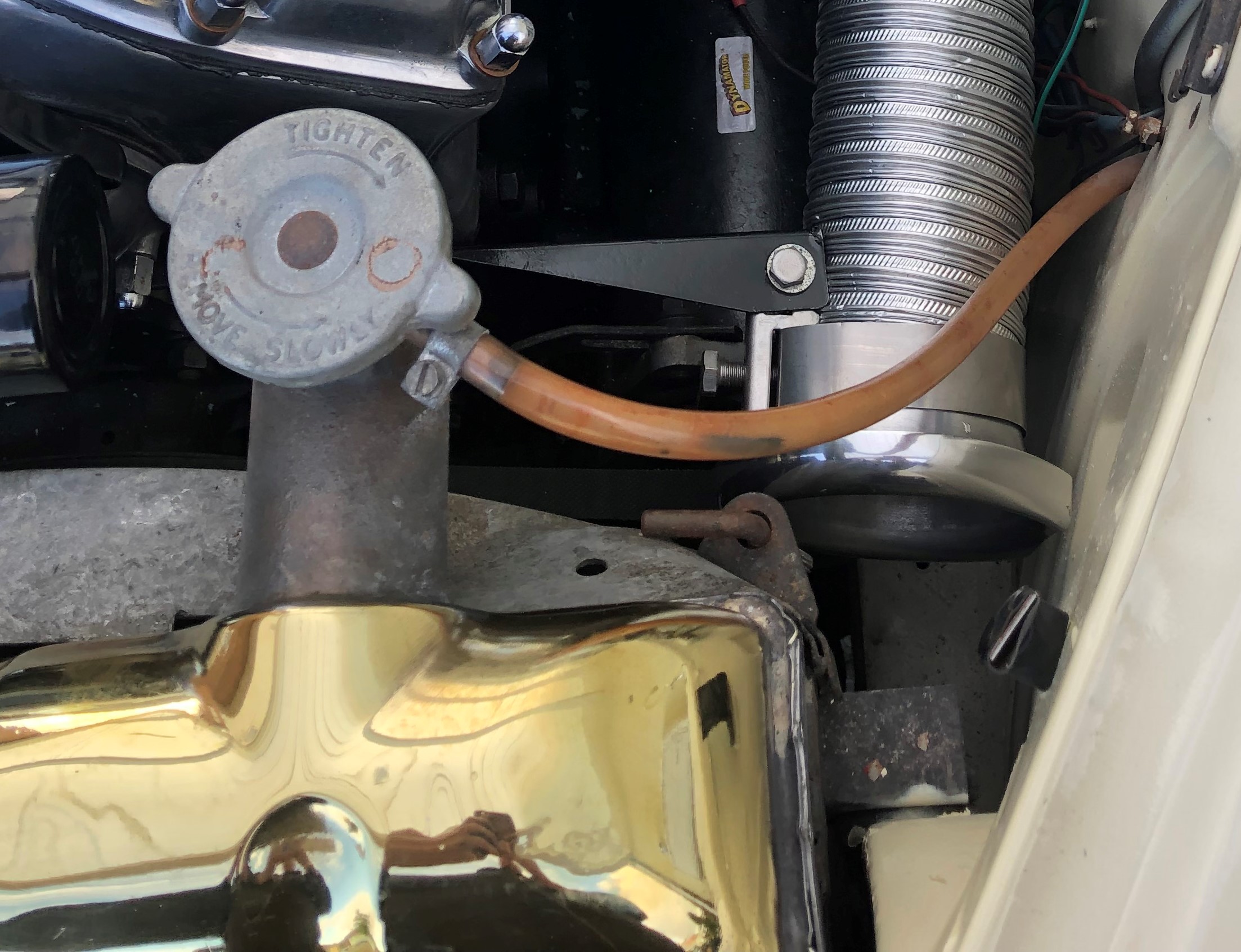

Here are a couple of photos which might help with the air hose and generator brackets.
