Suspension misalignment

Brakes (including handbrake), Steering, Suspension & sub-frames, Wheels & Tires
User avatar
jaguar&mg
Posts: 64
Joined: Thu Nov 23, 2017 10:35 pm
Location: South-West UK
Contact:

Re: Suspension misalignment

Post by jaguar&mg »

John Quilter wrote: Thu Aug 11, 2022 5:10 pm At the risk of obsessing about this matter, I have recently corrected the 1/2 inch low on the LH (driver side) front of my 3.8S which after 170K miles has all its original springs. I found on the internet these hard rubber spacers and being quite inexpensive, ordered a set.

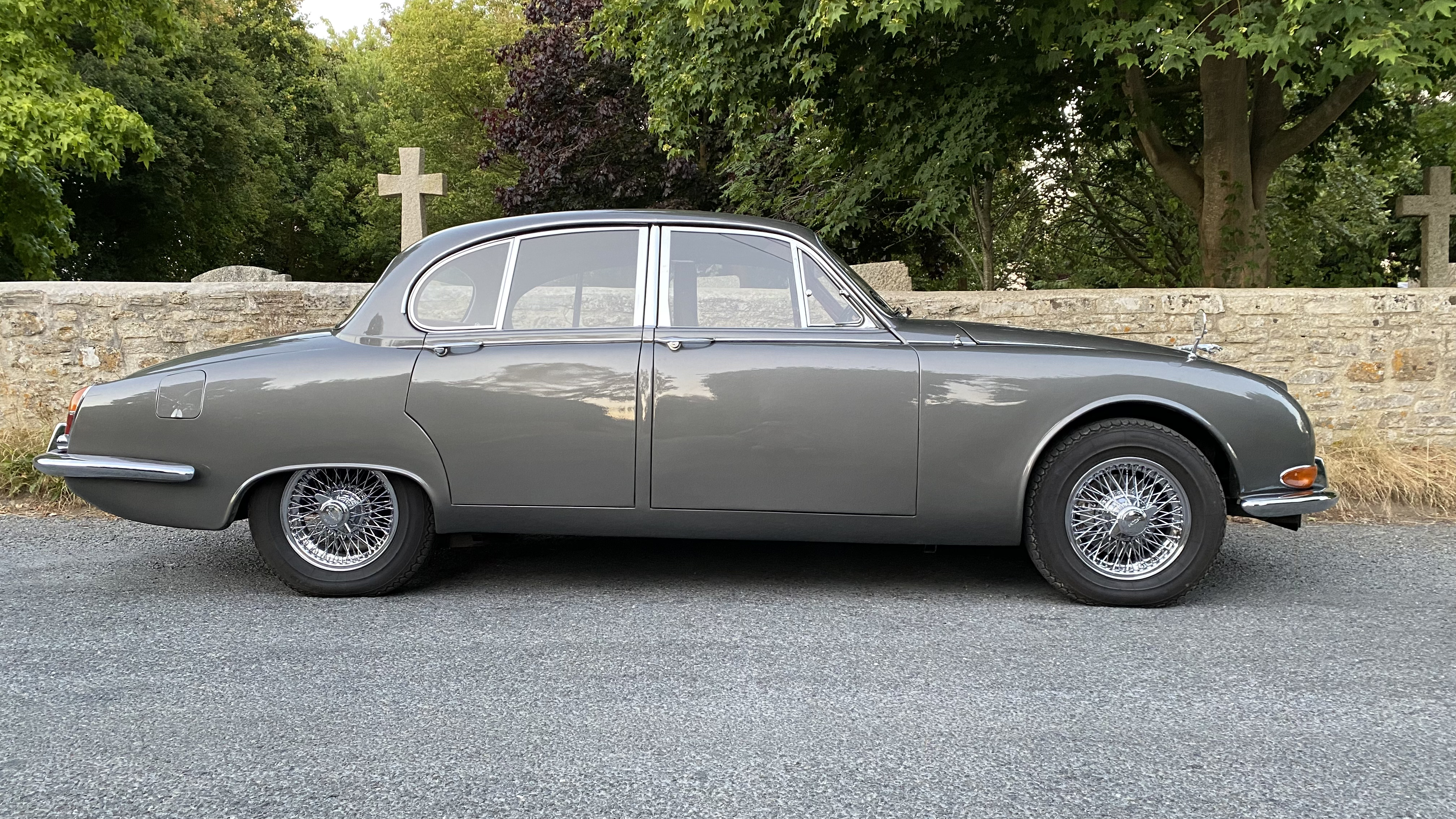

I think it's quite easy to over-think. Every time I look at the car I notice the suspension height. I actually think that the turning circle diagram (posted some time ago by Glyn) doesn't quite work with my car. I think that, in this photo taken this evening, it seems that my front wheels are too far back — the gap in front of the wheel is not the same as that behind it. It should be the same, I think. I thought this was related to suspension misalignment but now wonder if it is related to the after-market power steering that was installed a few years ago with rack and pinion conversion. It's possibly positioned not quite correctly. Any thoughts?
.
Church 01.jpeg
Church 01.jpeg (3.72 MiB) Viewed 2248 times

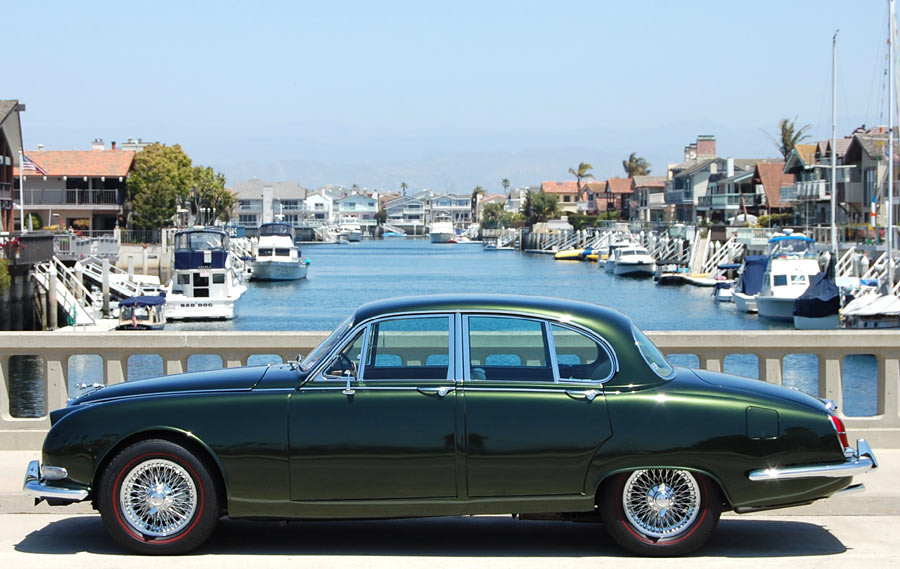

At a different angle it doesn't show as much — but I am very aware of it. And I know that the back is slightly too low, too. I don't think John's hard rubber spacers would work on the IRS (?).

Church 02 copy.jpeg
Church 02 copy.jpeg (3.8 MiB) Viewed 2248 times
1964 Jaguar S type 3.8 Man OD
1966 Jaguar S type 3.8 Man OD PAS
1967 MGB
1986 Jaguar XJ6 4.2 (series 3)
User avatar
Glyn Ruck
Posts: 1619
Joined: Sun Oct 07, 2018 2:14 pm
Location: Llandudno, Cape Town, South Africa
Contact:

Re: Suspension misalignment

Post by Glyn Ruck »

Has someone messed with your subframe mounting?

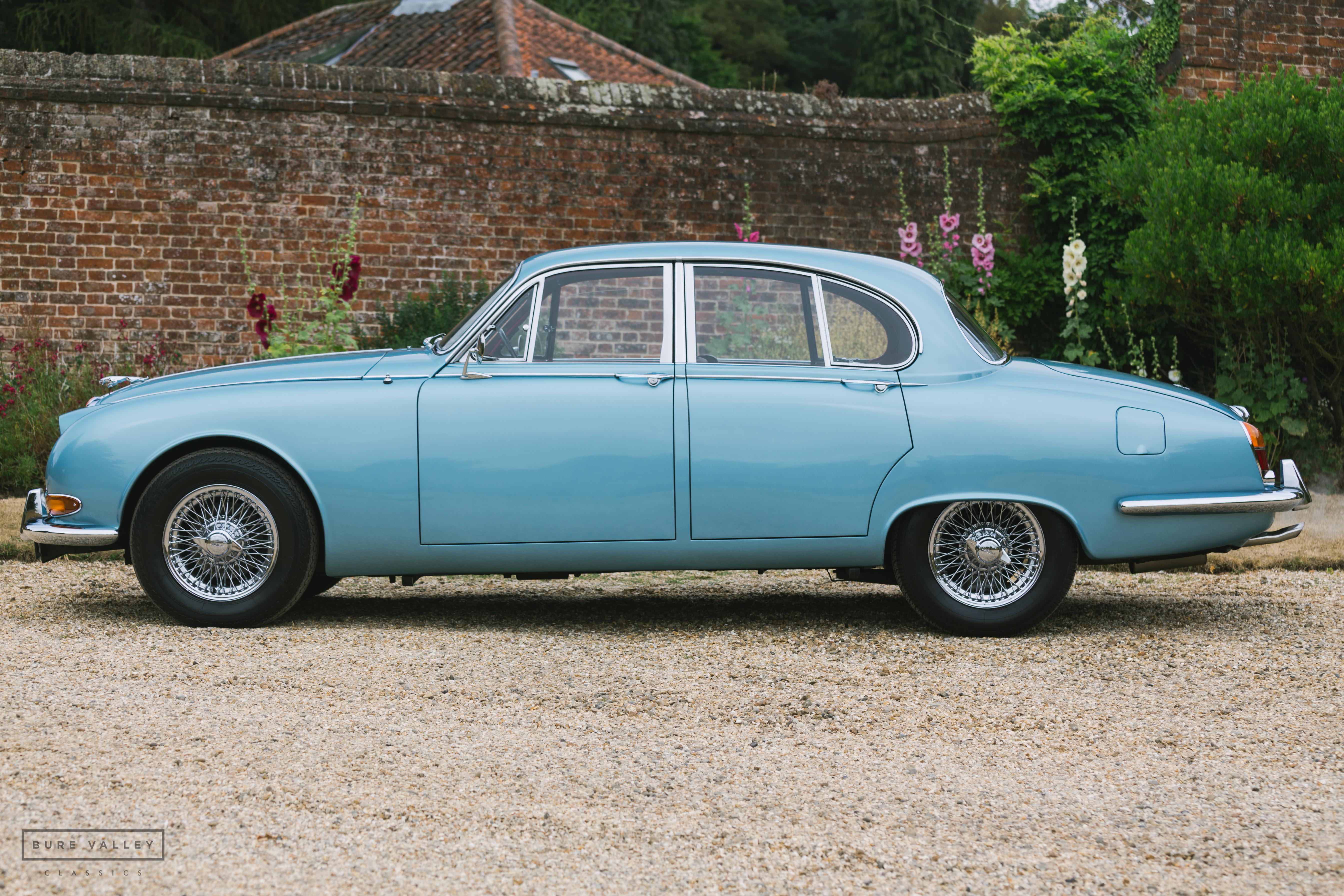

This is a good reference ~ take the shadow into account:

1965 Jaguar 3.8 S Type, Sync4, OD, PAS, BRG/Biscuit on chrome wires.
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
User avatar
John Quilter
Posts: 271
Joined: Tue Oct 29, 2019 8:53 pm
Location: Eugene, Oregon USA
Contact:

Re: Suspension misalignment

Post by John Quilter »

I don't think John's hard rubber spacers would work on the IRS (?).

They might, but you might have to cut down their thickness a bit to get them to squeeze between the coils of the rear springs even when the spring is fully extended. I had to do a bit of that with the ones I fitted to the LH front coil spring.
1965 3.8S MOD, 1990 XJ6, 1960 Morris Minors X2, 1951 MGTD, 1969 Austin America
User avatar
John Quilter
Posts: 271
Joined: Tue Oct 29, 2019 8:53 pm
Location: Eugene, Oregon USA
Contact:

Re: Suspension misalignment

Post by John Quilter »

jaguar&mg wrote: Thu Aug 11, 2022 8:42 pm
John Quilter wrote: Thu Aug 11, 2022 5:10 pm At the risk of obsessing about this matter, I have recently corrected the 1/2 inch low on the LH (driver side) front of my 3.8S which after 170K miles has all its original springs. I found on the internet these hard rubber spacers and being quite inexpensive, ordered a set.
I think it's quite easy to over-think. Every time I look at the car I notice the suspension height. I actually think that the turning circle diagram (posted some time ago by Glyn) doesn't quite work with my car. I think that, in this photo taken this evening, it seems that my front wheels are too far back — the gap in front of the wheel is not the same as that behind it. It should be the same, I think. I thought this was related to suspension misalignment but now wonder if it is related to the after-market power steering that was installed a few years ago with rack and pinion conversion. It's possibly positioned not quite correctly. Any thoughts?
.
Church 01.jpeg


At a different angle it doesn't show as much — but I am very aware of it. And I know that the back is slightly too low, too. I don't think John's hard rubber spacers would work on the IRS (?).


Church 02 copy.jpeg
I really do not think the installation of the rack & pinon system would have any effect on the fore and aft wheel relation to the fender wheel opening. It does not change the A frames upper or lower or the upright that the stub axle attaches to. It certainly did not on my car when I had the R & P system fitted.
1965 3.8S MOD, 1990 XJ6, 1960 Morris Minors X2, 1951 MGTD, 1969 Austin America
User avatar
jaguar&mg
Posts: 64
Joined: Thu Nov 23, 2017 10:35 pm
Location: South-West UK
Contact:

Re: Suspension misalignment

Post by jaguar&mg »

Glyn Ruck wrote: Sat Aug 13, 2022 4:08 pm Has someone messed with your subframe mounting?
Quite possibly, but probably before I owned the car I think. Extensive work had been carried out 'underneath' by a very reputable firm and, more recently, I have had some work done on the power steering—including r&p conversion.

So how would I/a garage be able to tell? And what sort of work—if any is possible—would rectify the situation? Big/prohibitively expensive, or not so bad?!
1964 Jaguar S type 3.8 Man OD
1966 Jaguar S type 3.8 Man OD PAS
1967 MGB
1986 Jaguar XJ6 4.2 (series 3)
User avatar
jaguar&mg
Posts: 64
Joined: Thu Nov 23, 2017 10:35 pm
Location: South-West UK
Contact:

Re: Suspension misalignment

Post by jaguar&mg »

John Quilter wrote: Thu Aug 11, 2022 5:10 pm I really do not think the installation of the rack & pinon system would have any effect on the fore and aft wheel relation to the fender wheel opening. It does not change the A frames upper or lower or the upright that the stub axle attaches to. It certainly did not on my car when I had the R & P system fitted.
It's useful to be able to write that idea [of mine] off. Thank you. I do need to solve this, though, as the road-holding is not what it should be (I have had an S-type before) but this being an impossibly expensive job (subframe mounting?) will, sadly, at the very least have to delay anything being resolved imminently.
1964 Jaguar S type 3.8 Man OD
1966 Jaguar S type 3.8 Man OD PAS
1967 MGB
1986 Jaguar XJ6 4.2 (series 3)
